Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal

  • Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
  • Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
  • Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
  • Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
  • Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
  • Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
Hàng hiệu CHIC
Chứng nhận ISO CE
Model Number CHIC-3000BS
Minimum Order Quantity 1 Pcs
Packaging Details Laminated Paper Cartons
Delivery Time 35-40 Days
Payment Terms 40%TT Deposit And 60% TT Before Shipping
Supply Ability Milk, Juice, Wine, Water, Food And Degergent Sauce,

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Điều khiển PLC Nguồn điện 380V/50HZ hoặc tùy chỉnh
Máy móc SUS304 khả năng đóng gói 1000-5000CPH
Kích thước nắp φ26-φ36, Một kích thước cho một máy hoặc tùy chỉnh Tiêu thụ không khí 3m³/phút, 0,8-1MPa
Kích thước máy 4830mm×2150mm×3780mm Người mẫu CH-5000LS
Làm nổi bật

1000-5000CPH Packing Capacity Aseptic Carton Filling Machine

,

φ26-φ36 Cap Size Juice Cartons Fill and Seal Machine

,

3m³/min Air Consumption Brick Type Carton Fill and Seal Machine
Để lại lời nhắn
Mô tả sản phẩm
0.5-1% Filling Accuracy Juice Cartons Fill and Seal Machine for Turn Key Projects
Product Description

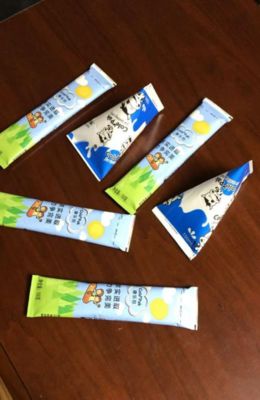

50-100ml Stick and Triangular Shape Aseptic Filling Machine For 100% Pure Juice or Milk beverages

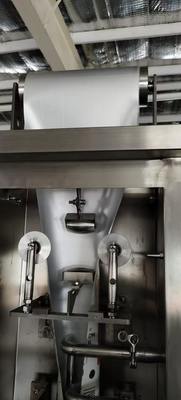

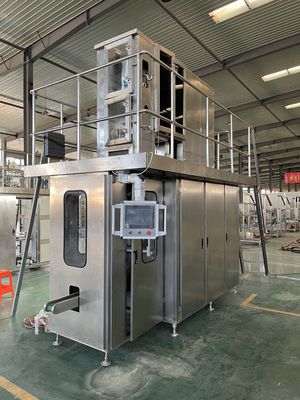

The CH series aseptic carton filling machine is specifically designed to fill sterilized liquid food into sterilized packaging material under aseptic conditions.

This machine is suitable for filling long strip or triangular paper-plastic composite film packaging types. Commonly seen on the market, general canning scales range from 500ML to 100ML per package. It can be used for filling milk, fruit and vegetable juice, vegetable protein, etc., packaged in paper-aluminum-plastic composite cartons.

This machine is responsible for sterilizing the carton roll packaging. The filling environment inside the machine is sterile, and when used in conjunction with UHT, the filled beverage becomes sterile, allowing the shelf life of the beverage to reach 6-12 months at room temperature.

Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal 0 Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal 1
Key Features
  • Automatically performs feeding, sterilization, filling, preforming, sealing, and boxing processes
  • Incorporates PLC control, photoelectric correction, variable frequency speed regulation, and intelligent electronic temperature control
  • Filling section controlled by mass weighing system for precise quantitative filling
  • Mirror welding technology ensures smooth, level weld seams without sanitary dead zones
  • Programmable Logic Controller (PLC) enables automatic operation
  • Closed-loop control technology manages tension, optoelectronic detection, and touch-screen interface
  • Combination of mechanical primary drive and pneumatic auxiliary drive ensures stable operation
Technical Specifications
Production Capacity 5000 packets/hour
Filling Range 100ml
Box Shape Triangle bag/pillow bag
Shelf Life 6-12 months at 25-30ºC
Packaging Material Paper/Polyethylene (PE)/Aluminum film
Power 14kw
Voltage 3相电 380V/220V 50Hz
Air Source Consumption 1m³/min 0.8Mpa
Weight 3000kg
Dimensions 4600*1840*3660mm
Machine Components
Item Component Brand Origin
1 PLC Inovance/Omron China/Japan
2 Touch screen Inovance/Omron China/Japan
3 Intermediate relay IDEC Japan
4 Air switch Schneider France
5 Contactor Schneider France
6 Cylinder SMC Japan
7 Electromagnetic valve AIRTAC China
8 Photoelectric Inovance/Omron China/Japan
9 Proximity switch 1 GARLO GAVAZZI Switzerland
10 Proximity switch 2 Autonics Korea
11 UV lamp and components Philips Netherland
12 Servo motor Inovance/Omron China/Japan
13 Servo motor driver Inovance/Omron China/Japan
14 Planetary reducer Newstart China
15 Color sensor SICK Germany
16 Bearing sleeve Igus Germany
17 Valve Yuanan China

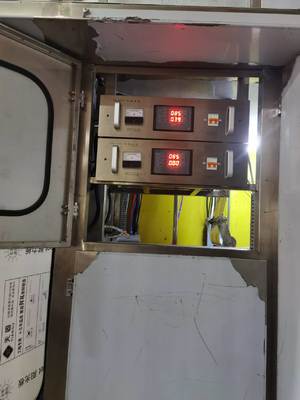

18 Temperature control Horning China
19 Structure material SUS304 China
Applications

This machine is designed for filling various liquid beverages such as soy milk, plant milk, yogurt, fruit and vegetable juice, and plant protein. The beverages are packaged in paper aluminum plastic composite packaging cartons, making it an environmentally friendly choice.

Based on the shape and capacity requirements of the product, the CHIC series filling machine offers a range of options including 125ml, 200S (slim 200ml), 200B (standard 200ml), 250S (slim 250ml), 250B (standard 250ml), 200Z (200ml diamond carton with cap/straw), 250D (250ml diamond carton with cap/straw), 330D (330ml diamond carton with cap/straw), 500D (500ml diamond carton with cap/straw), 500S (500ml slim carton with cap/straw), 1000S (1000ml slim type), and 1000D (1000ml diamond carton with cap).

Support and Services

Our Aseptic Carton Filling Machine comes with comprehensive product technical support and services to ensure optimal performance and efficiency.

Our technical support team is available to assist with installation, training, troubleshooting, and maintenance of the machine. Additionally, we offer regular maintenance services to keep the machine running smoothly and to address any potential issues proactively.

Our goal is to provide reliable support and services to maximize the uptime and productivity of your Aseptic Carton Filling Machine.

Frequently Asked Questions
Q: What is the brand name of this Aseptic Carton Filling Machine?
A: The brand name of this machine is CHIC.
Q: What is the model number of this Aseptic Carton Filling Machine?
A: The model number of this machine is CHIC-3000BS.
Q: Where is this Aseptic Carton Filling Machine manufactured?
A: This machine is manufactured in China.
Q: What certifications does this Aseptic Carton Filling Machine have?
A: This machine is certified with ISO and CE standards.
Q: What is the minimum order quantity for this Aseptic Carton Filling Machine?
A: The minimum order quantity for this machine is 1 piece.
