75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB

  • 75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
  • 75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
  • 75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB
Nguồn gốc Trung Quốc
Hàng hiệu OEM
Chứng nhận CE
Số mô hình CHIC-50A
Số lượng đặt hàng tối thiểu 500
Giá bán USD 40-45
chi tiết đóng gói kích thước đóng gói (L × W × H) ： 1300mm × 850mm × 1210mm
Thời gian giao hàng 7 ngày
Khả năng cung cấp 500 CÁI / NGÀY

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Tên 75kw 100hp CHIC-100A Máy nén khí trục vít quay được sử dụng Giao hàng qua đường hàng không 13.0m³ / phút
điện lực Ba pha 380/60 hoặc 440/60 (V // Hz) Sức ép 8 thanh
Mức độ ồn 75 ± 2dB Quyền lực 100HP / 75KW
N.weigh 1500kg Màu sắc Màu xanh da trời
Làm nổi bật

75kw portable screw compressor

,

75dB portable screw compressor

,

75dB industrial screw compressor
Để lại lời nhắn
Mô tả sản phẩm

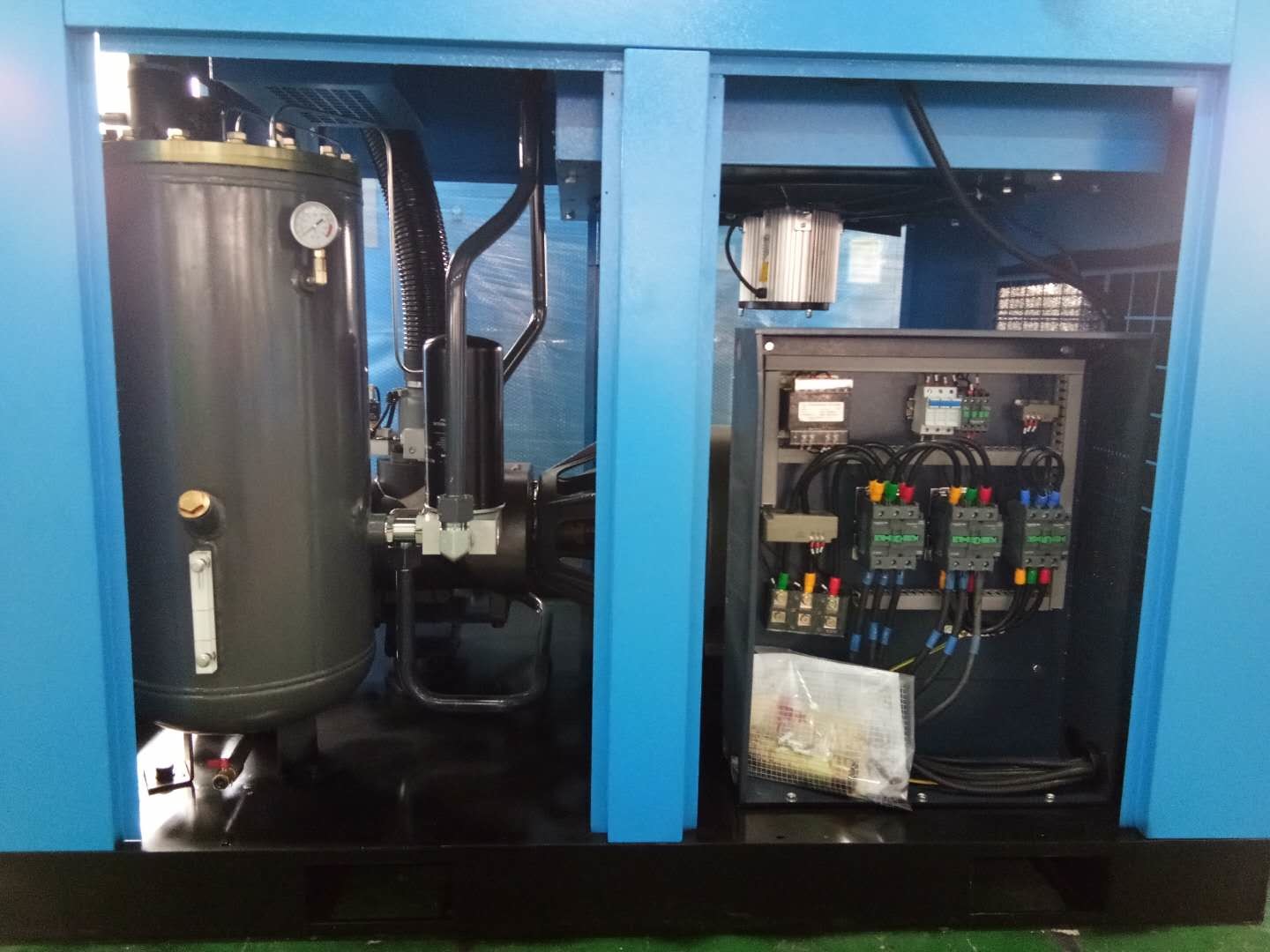

Cooler fan

High efficirency and learge air volume , greatly lower the temperature , prolong the lubricating oil change period

EXHAUST

The exhqaust from the com-pressor is directly discharged to the tank which reduces the intermediate connecting pipe and effectively saves space

High performance frequency converter

Makes the operation more stable and carrying out real-time vetor calculation according to different air delivery

PLC

7-inch color screen ,touch operation be equipped with active protection alarming , maintenance reminding and automatic 24-hour unattended operation





75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB 0



75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB 1





Technical parameters



Model CHIC-100A
Power 100HP/75KW
FAD: (M3/MIN) 13.0
Pressure 8 bar
Cooling Air-cooling
Lubricant 36L
Noise level 68±2dB
Drive method Direct drive type
Discharge temperature Environment Temp+15℃-18℃
Electricity Three phase 220/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch)

G2″
Oil content of air <2ppm
Dimension 1150MM*1550MM*1660MM
Net weight 1500KGS

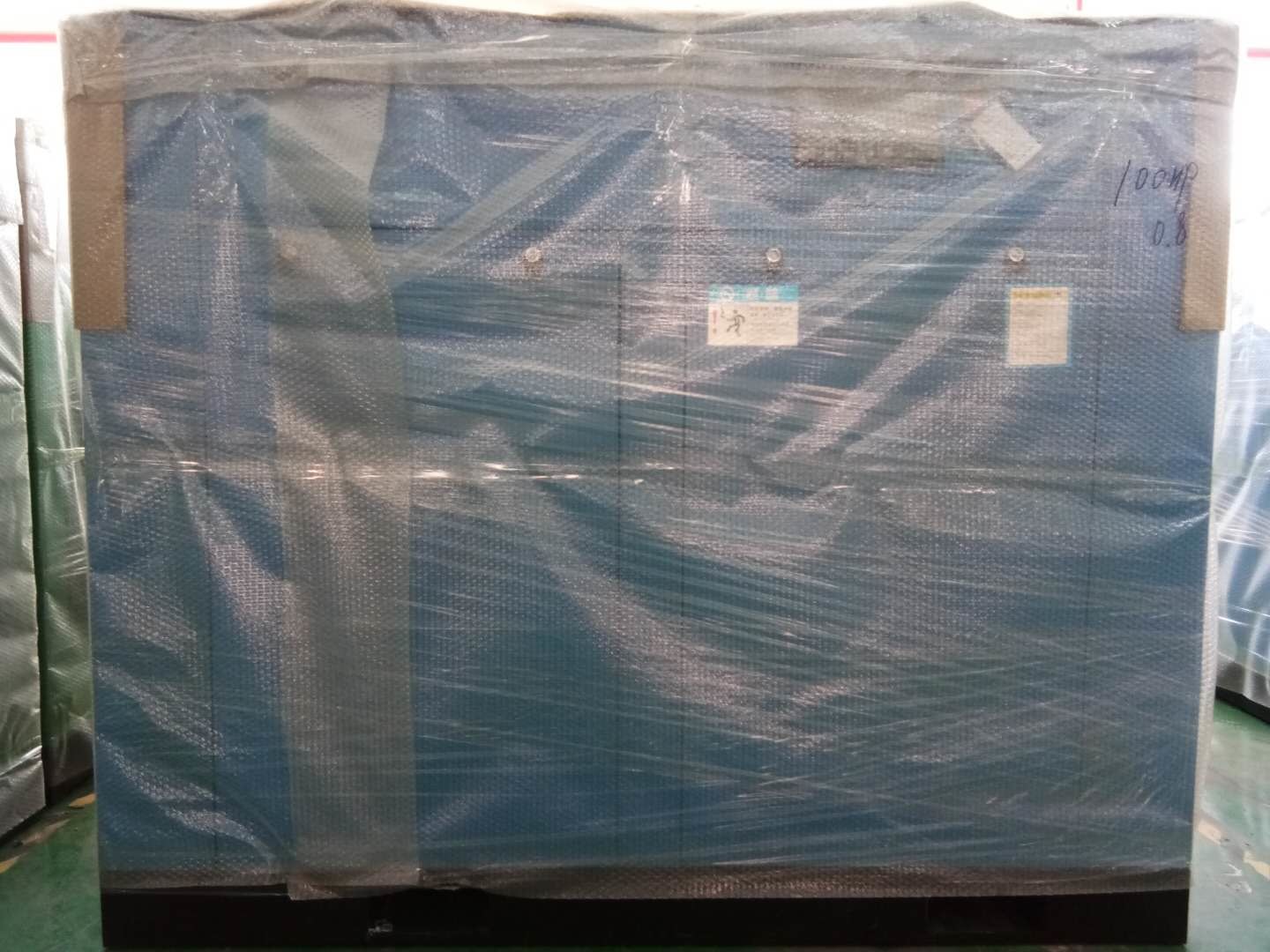

Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



75kw Portable Screw Compressor Industrial 13.0m3 Min 75dB 2

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
