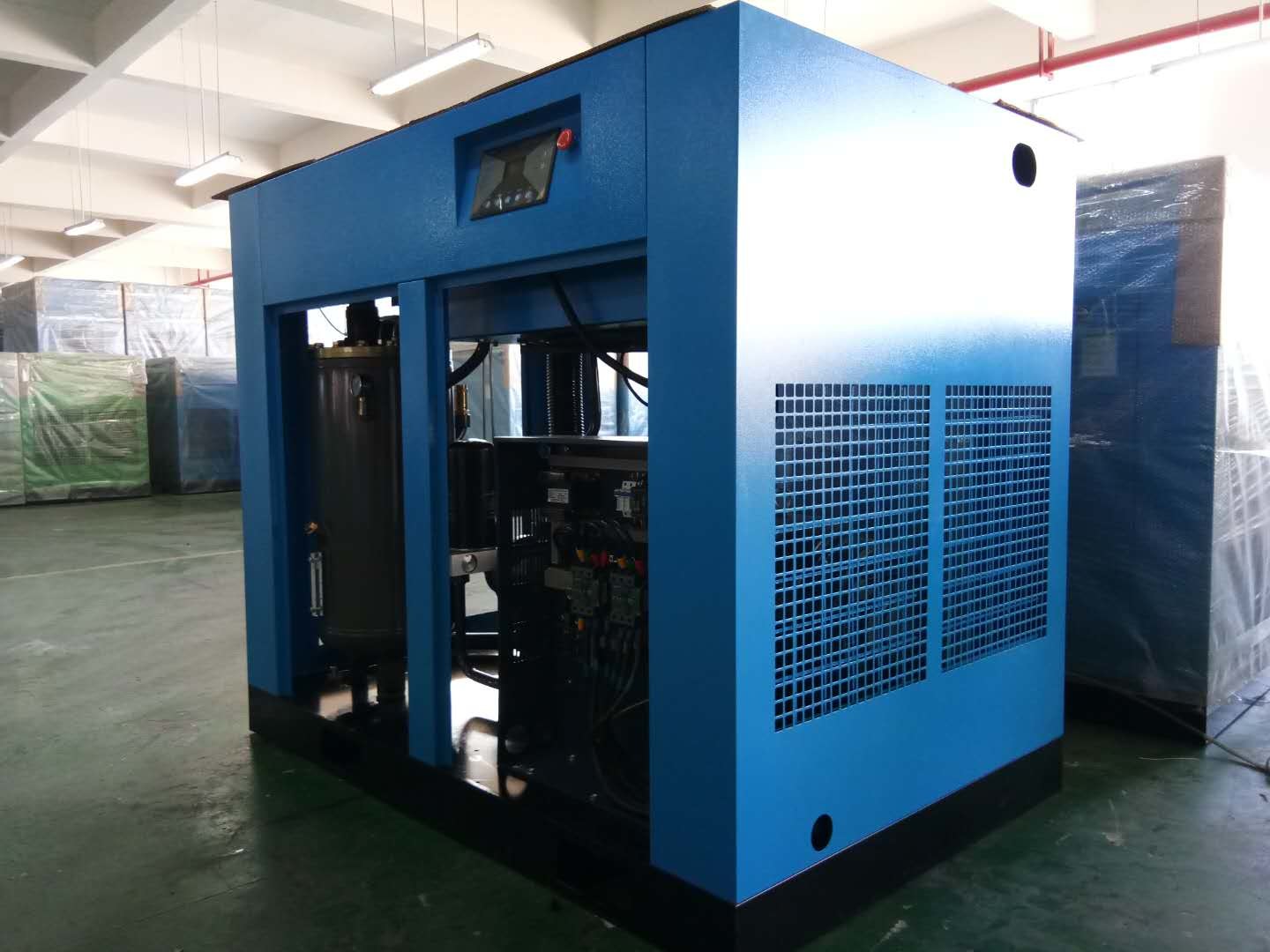

Industrial Rotary Screw Air Compressor 55kw 75 Hp 9.8m3 Min

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xTên | Máy nén khí trục vít điều khiển trực tiếp 55kw 75hp 380V CHIC-75A | Giao hàng qua đường hàng không | 9,8m³ / phút |
---|---|---|---|
điện lực | Ba pha 380/60 hoặc 440/60 (V // Hz) | Sức ép | 8 thanh |
Mức độ ồn | 70 ± 2dB | Quyền lực | 75HP / 55KW |
N.weigh | 1000kg | Màu sắc | Màu xanh da trời |
Làm nổi bật | 75hp Screw Air Compressor,55kw Screw Air Compressor,55kw 75 hp screw compressor |
cooler:Aluminum fin structure, heat exchange effect is good, reduce the temperature of the whole machine, ensure the air compressor working temperature tends to a stable range, unique structure, to meet all kinds of environment.
oil filter:High precision glass fiber oil filter, ensure the lubricating oil into the main engine crystallization, prolong the service life and maintenance cycle of the main engine.
oil-water separator:A specially designed oil and gas separation system ensures a lower pressure differential, thus reducing energy consumption. With advanced three-stage oil and gas separation, the oil content is controlled under 3ppm to ensure the high quality of compressed air.

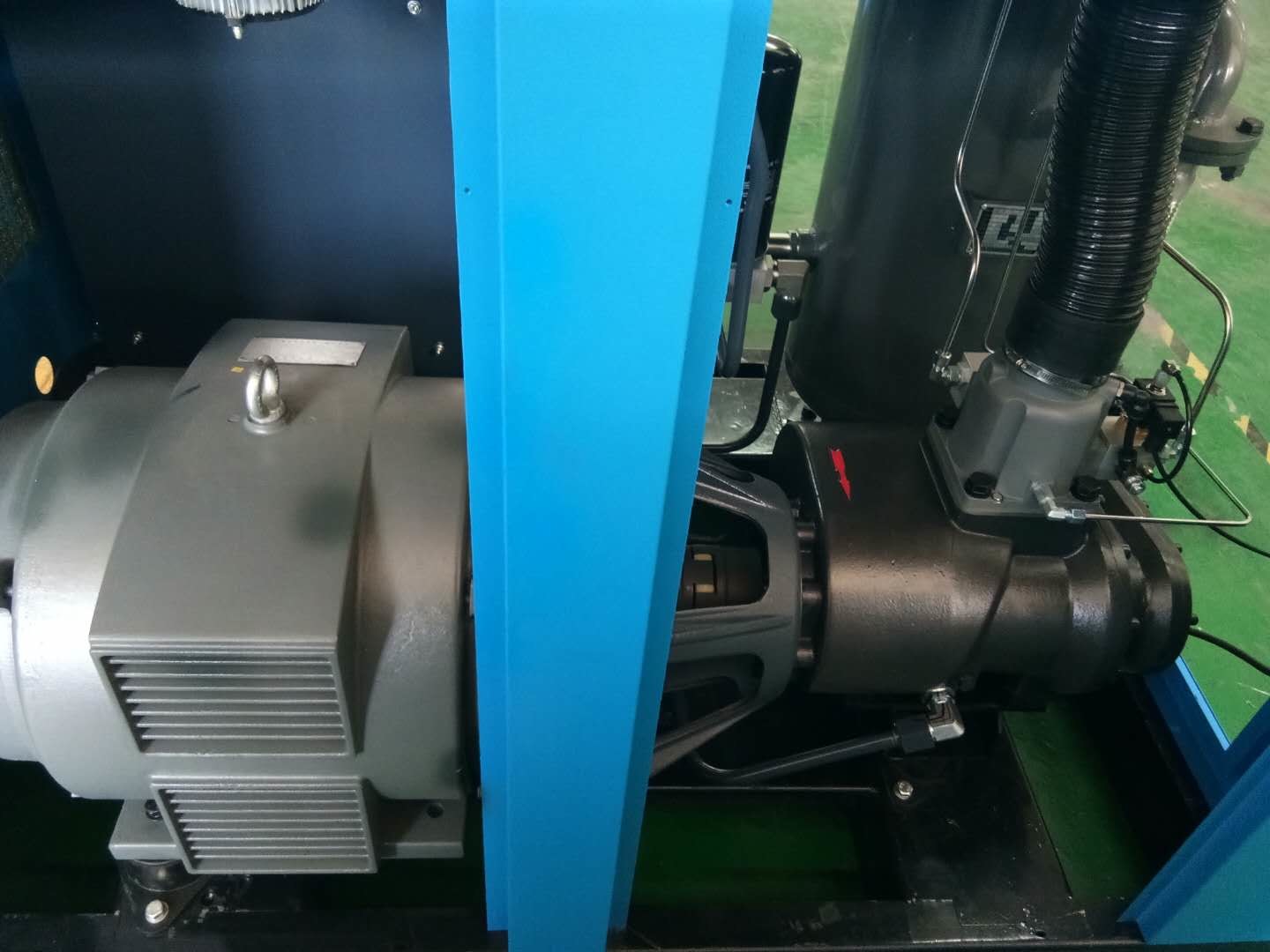

air end:Professional customized compression air end, improve the volume efficiency, reduce bearing load, improve the service life of the air end.
inverter:Advanced frequency conversion control system, high efficiency frequency converter, small start impact, avoid start overload.
fan:Centrifugal fan, low noise, high wind pressure, exhaust cooling, good cooling effect.
air filter:Original imported filter material, high efficiency triple air separator, effectively keep the internal cleanliness of the system.
motor:Professional customized high-efficiency permanent magnet motor, protection level up to IP54.
inlet valve:Unique intake channel design, intake adjustment range 0-100%, capacity adjustment valve adjustment, small pressure loss, stable action, long service life.
Technical parameters
Model | CHIC-75A | ||
Power | 75HP/55KW | ||
FAD: (M3/MIN) | 9.8 | ||
Pressure | 8 bar | ||
Cooling | Air-cooling | ||
Lubricant | 36L | ||
Noise level | 75±2dB | ||
Drive method | Direct drive type | ||
Discharge temperature | Environment Temp+15℃-18℃ | ||
Electricity | Three phase 380/60 or 440/60 (V//Hz) | ||
Starting method | Y-△ starter | ||
Air outlet: Pipe diameter(inch) |
G2″ |
||
Oil content of air | <2ppm | ||
Dimension | 1150MM*1550MM*1660MM | ||
Net weight | 1000KGS |

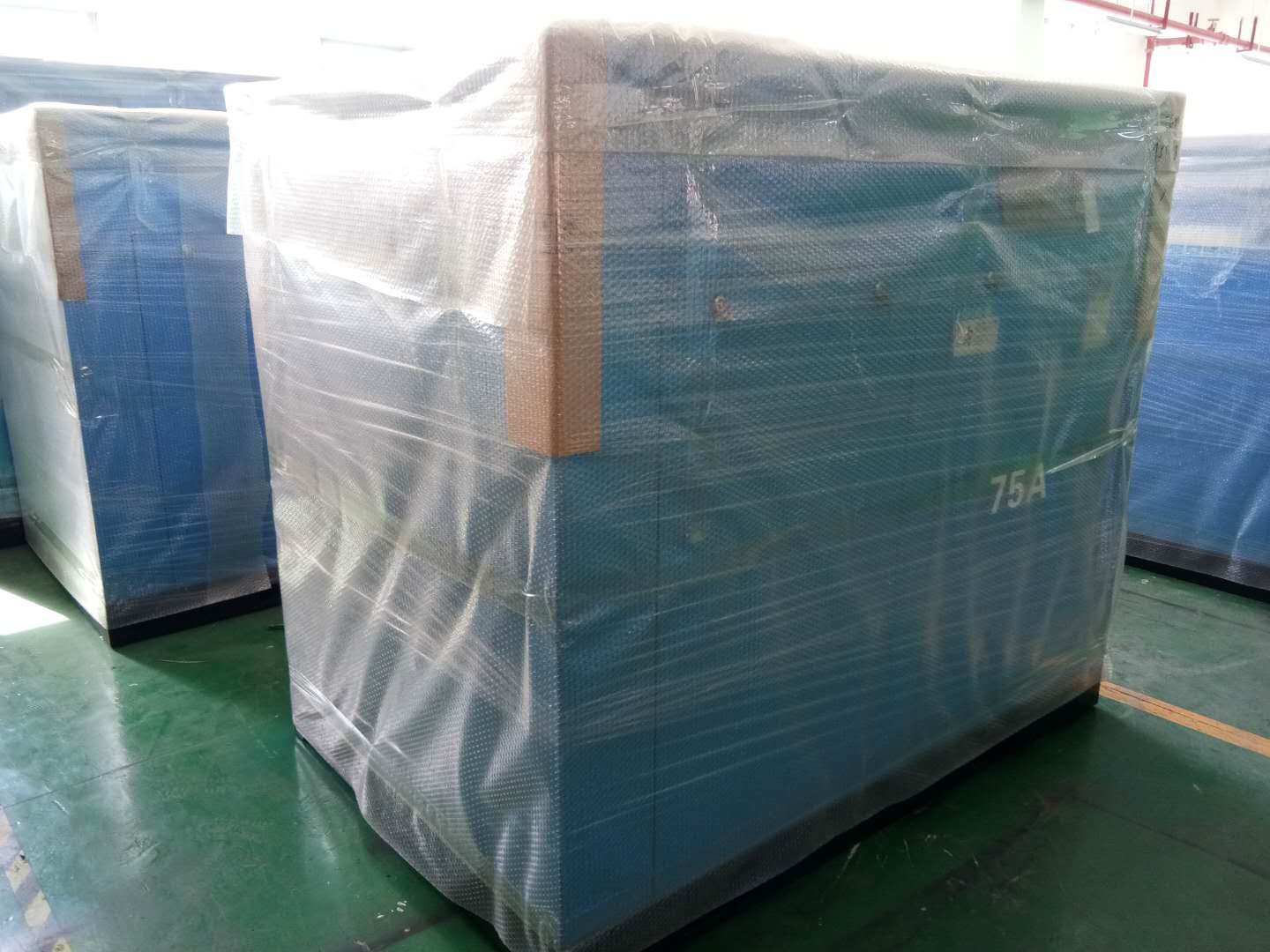

Packaging & Shipping
Our services
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credite , promise to protect your sales data, design,patent information.
5. Sample & OEM service is available
6. After-sales service. any question will be settled within 3 days
FAQ
Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.
Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager
Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
